When it comes to custom pulp molded packaging, mold design and costs form a significant part of the project’s budget. Understanding the structural requirements, production methods, and lifecycle of these molds is essential to making informed decisions that balance cost with product quality and productivity. This guide will break down the critical elements of pulp packaging molds, shedding light on the unique considerations that come into play with both wet and dry pressing processes.
Mold Structure Introduction in Pulp Molded Packaging
In the world of pulp molded packaging, molds are complex, multi-component systems, each designed to perform different stages of the packaging production process. For custom packaging solutions, a typical mold setup consists of 5 key parts:

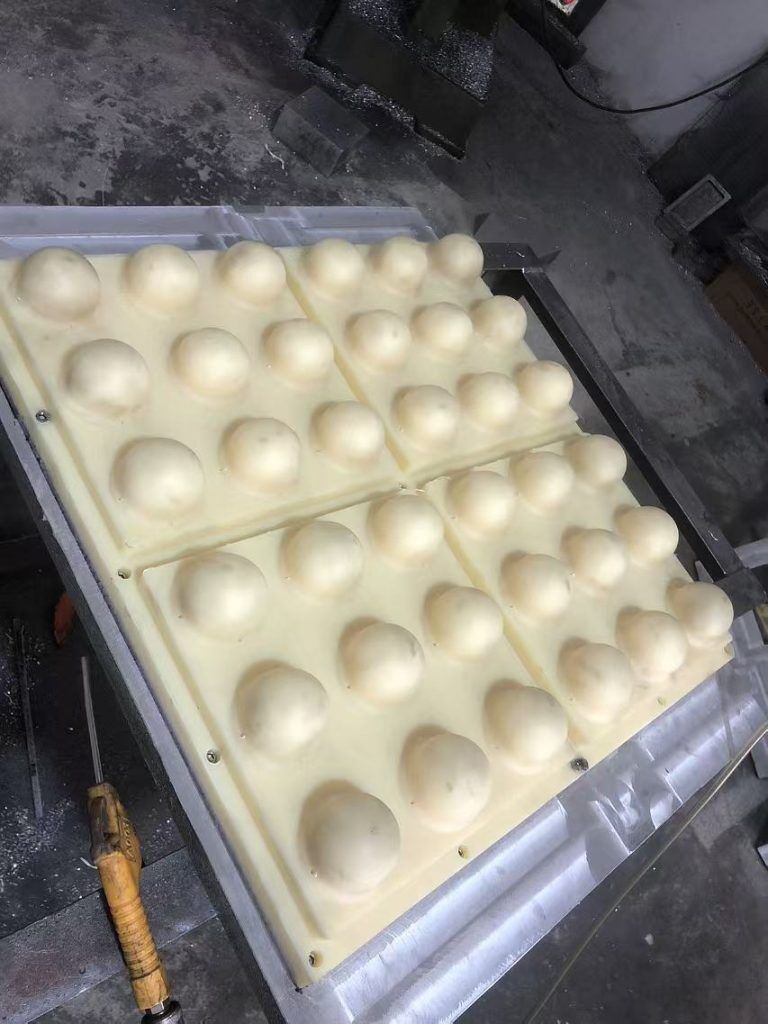

1. Forming Mold (Water Mold): Used during the forming stage, this mold is a two-part setup (upper and lower) designed for pulp formation. To efficiently allow water and air to escape, the lower parts require a mesh cover which helps to shape the pulp precisely.

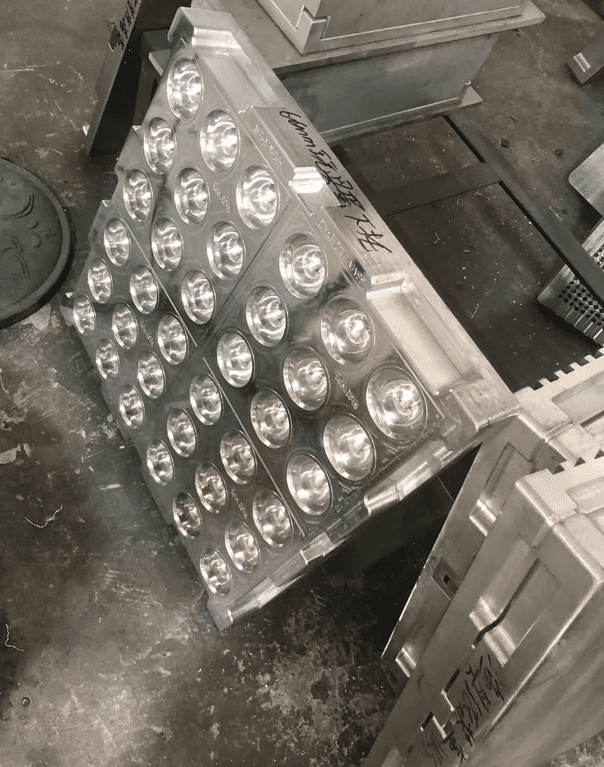

2. Hot Press Mold: Employed in the hot pressing stage, this two-part mold (with a concave and convex part) applies pressure and heat to set the pulp’s shape. Wet pressing molds are built to accommodate as many cavities as the maximum template size permits, increasing output per press. By contrast, dry pressing typically uses one-product hot press molds to maintain high-speed output.
3. Edge-Cutting Mold: This mold comes into play in the trimming process, where it cuts the edges for a clean finish, ensuring uniformity and quality in the final product.
Each mold component plays a critical role in achieving the desired product quality and consistency, with mesh-covered areas facilitating efficient drainage and airflow, especially during forming.
Why Wet Pressing Molds Cost More Than Dry Pressing Molds？
Understanding the differences between wet and dry pressing will help you understand why wet pressing molds are usually more expensive. Each method has its own set of steps and produces slight different surface qualities which impacts on the mold design and manufacturing cost.
Process Flow Comparison:
- Wet Pressing Process:
- Wet pressing includes four steps: pulping, forming, hot pressing, and edge trimming. Because the pulp goes directly from forming to hot pressing, the result is a smoother, higher-quality finish that’s ideal for products with intricate designs.
- Dry Pressing Process:
- In dry pressing, the process includes an additional drying step after forming, so the pulp is dry when it enters the hot press stage. The resulting products are slightly coarser.
For specific process comparison, please refer to this blog.
Hot press molds in wet pressing are designed with as many cavities as possible in the maximum template size to maximize output per cycle. This design is also more costly since higher precision and more complex molds are required. With the added drying step, dry pressing requires a smaller hot press mold (most often 1 product per mold), for faster cycle time needed and a reduced cost for the mold. If dry pressing used hot press molds as large as those in wet pressing, costs would be similar. However, due to the fast cycle time, it’s unnecessary; a one-product mold in dry pressing can easily keep up with forming stage capacity.
This combination of larger, high-precision molds in wet pressing and smaller, simpler molds in dry pressing explains why wet pressing molds tend to be more expensive.
How Mold Design Affects Production Capacity？
The design of the molds directly impacts the production efficiency in pulp molding.
- Cavity Count and Product Size:
- The number of products that can be molded at one time depends on the cavity count in the forming molds, which are made to fit as many cavities as the maximum template size allows. For smaller products, the mold can have a higher cavity count, increasing the number of products per cycle. For larger items, fewer cavities can fit, reducing output per cycle.
- Process Efficiency:
- Due to the added drying step, dry pressing molds can complete the hot press cycle in mere seconds, supporting higher production capacity. In contrast, wet pressing requires around two minutes for the hot press stage, reducing throughput. Therefore, the dry pressing process usually has higher productivity without increasing the hot pressing mold of the wet pressing process.
Life of Mold And Maintenance
Mold longevity is another important consideration in pulp molded packaging. The expected life of a mold is generally measured in part shots or years. For example, a typical mold lifespan might be around 500,000 shots or five years, depending on factors like mold material, usage frequency, and maintenance routines.
To maximize mold life, regular maintenance is critical, as this ensures consistent performance and product quality. Replacing worn components and performing periodic inspections can prevent premature wear, extending the mold’s effective lifespan and reducing overall costs.
Selecting the Right Mold Solution for Your Packaging Needs
Mold solution selection is important as there are various mold structures, production processes and cost considerations. Here are some factors to keep in mind:
- Production Volume: Both wet and dry pressing molds can be used for high-volume production. Dry pressed molds will have faster cycle times and higher capacity, but wet pressed molds can yield the same output by increasing the number of hot press molds. For projects with very large demands, wet pressing remains a feasible option with adjustments to capacity.
- Surface Quality and Product Type: For high end product where aesthetic is important, wet pressing molds with smoother surface finish are used. Dry pressing molds are better for industrial items or packaging which prefers little surface requirements. Additionally, dry pressing may be the preferred choice for heavier or bulkier products, where a coarser finish is acceptable or even desirable for functional reasons.
- Budget: While wet pressing molds are more costly, the investment may be worthwhile for projects requiring high-quality finishes. Dry pressing molds offer a cost-effective alternative for projects with simpler requirements.
Each of these considerations will help you determine the best mold solution for your custom pulp molded packaging, balancing quality and budget to meet your specific needs.
Conclusion
Mold design can be a critical element in determining costs, output capacity and product quality in custom pulp molded packaging. From understanding the structural components to choosing between wet and dry pressing processes, each decision impacts your bottom line and the effectiveness of your packaging solution. With in depth knowledge of these elements, you will be able to make sensible decisions to suit your business needs and your packaging objectives efficiently.
